Blister packaging BPC 23

BLISTER PACKAGING BPC 23

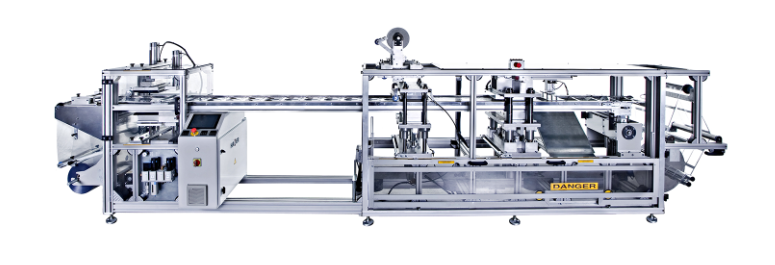

Model: Blister packaging BPC 23

Automatic line machine suitable for manufacturing face-seal blister, full-sealed blister and full plastic blister.

Features

Dedicated to the production of short and medium runs
Low operating and maintenance cost.
Quick tool set change-over, done by only one operator.
PLC operated, touch-screen controlled.
Steel-rule die cutter, which avoids misalignment in the cut.
Film traction by chain conveyor.
Monoblock chassis that does not require assembly at start-up.
Optional automatic card feeder.
EU safety rules compliance.

Operation

The BPC23 integrates all the necessary operations for the manufacture of the blister, from the thermoforming from a plastic roll, through the loading of the product, sealing, individual punching of each of the figures and expulsion of the finished blister.

BPC23

Automatic line for manufacturing of blister packages either sealed against flat film or cardboard. It is designed to be an entry level in automatic form, fill and sealing lines being the right choice for anyone dealing with short and medium runs of blister packages of any kind.

Operation

All machines in the BPC series integrate all operations needed to manufacture a blister package, as forming of the blister, loading of the product and sealing and trimming operations.

Plastic film is fed from a roll into a set of indexing chains that pierce the film and transport it through a contact heater for heating to forming temperature. The heated sheet then indexes into a forming station where parts are formed by vacuum. The loading area allows the manual feeding of the products and the paper insert (if needed). Once products are already placed inside the firmed blisters, sheet moves into a sealing station where the complete working area is sealed against a plain film or a cardboard. Finally, sheet moves into a die-press mounted immediately after the sealing press where individual blisters are punched out.

All relevant operational parameters are controlled via a touch-screen and saved inside the built-in PLC.

Features

Sturdy construction, designed from scratch.
Low cost operation, extremely low mechanical maintenance.
Quick tool set change-over.
PLC operated, touch-screen controlled.
EU safety rules compliance.

Technical specifications

Forming film roll diameter (max.)	400 mm
Forming film thickness (max.)	0,5 mm
Forming film width (max.)	350 mm
Forming film width (min.)	180 mm
Forming area (max.)	310 x 210 mm
Forming area (min.)	150 x 100 mm
Forming depth below film line (max.)	60 mm
Vacuum pump flow	21 m3/h
Heating power	4.8 kW
Sealing film roll diameter (max.)	300 mm
Sealing film thickness (max.)	0,15 mm
Loading area length	1000 mm
Loading area height	950 mm
Sealing force	950 Kg
Die-cutting force	10.000 Kg
Cycle speed (dry conditions)	12 cycles/min
Total installed power	13 kW
Total air consumption (at 12 cycles)	34 m3/h
Power supply	400V + T + N, 50 Hz

Dimensions

Height	1.500 mm
Width	880 mm
Length	5.500 mm
Estimated Weight	1.400 Kg

Optional elements

Heating plate to heat steel-rule die cutter
Automatic card feeder
